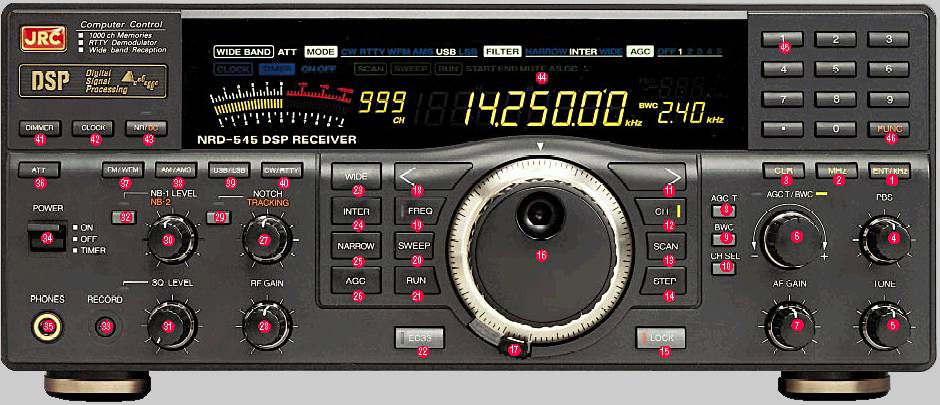

Receiver Front Panel Layout

NRD-545 Controls and Features
1ENT/kHz switch2MHz switch
3CLEAR switch4Pass Band Shift control
5TONE control6FINE control
7AF GAIN control8AGC Time switch
9Bandwidth Control switch10Channel Select switch
11Up switch12Channel switch
13SCAN switch14STEP switch
15LOCK switch16Main tuning control
17Variable torque control18Down switch
19Frequency switch20SWEEP switch
21RUN switch22ECSS switch
23WIDE switch24INTER switch
25NARROW switch26AGC switch
27NOTCH control28RF GAIN control
29NOTCH switch30Noise Blanker LEVEL control
31Squelch LEVEL control32Noise Blanker switch
33RECORD jack34POWER switch
35PHONES jack36ATT switch
37FM/WFM switch38AM/AMS switch
39USB/LSB switch40CW/RTTY switch
41DIMMER switch42CLOCK switch
43Noise Reduction/Beat Canceller switch44LCD Display
45Ten-key pad46Function switch
